0800mm [31.500″] Cloth & Gasket (CGR) Recess Chamber Filter Plate

Name: 0800mm [31.500"] Cloth &amp; Gasket (CGR) Recess Chamber Filter Plate
SKU: 945
Availability: InStock

$525.00

Made with 100% sourced American materials. 0800mm Polypropylene molded chamber filter element with pipped filtration area. See below

Center Feed Hole Diameter: 101.6mm | Discharge Hole (Eye) Diameter: 38mm | StayBoss Location 124mm x 4

The head plate will include a clamping ring and hardware.

Please see the Drawing and Product Specifications for more details.

In stock (can be backordered)

Filter Cake Thickness (G/2) *

Plate Type *

Web Thickness *

Porting Style *

Discharge (Eye) Hole Location (D) *

Head Plate NPT/Feed Diameter *Enter # between 1.5 - 3 inches

Discharge NPT *Enter # between 1.5 - 2 inches

Intermediate Cloth Installation *

End Cloth Installation *

Cloth Color *

Handle Type *

Handle Installation *If "No Install", the handles will be bolt-on version with hardware.

Rail Thickness *Please enter in mm.

Distance Inside Rail *Please enter in mm.

Handle Location *Distance from top of the plate down to the bottom of the handle. Enter in mm.

Handle Height *Centerline up to the bottom of the handle. Enter in mm.

Description

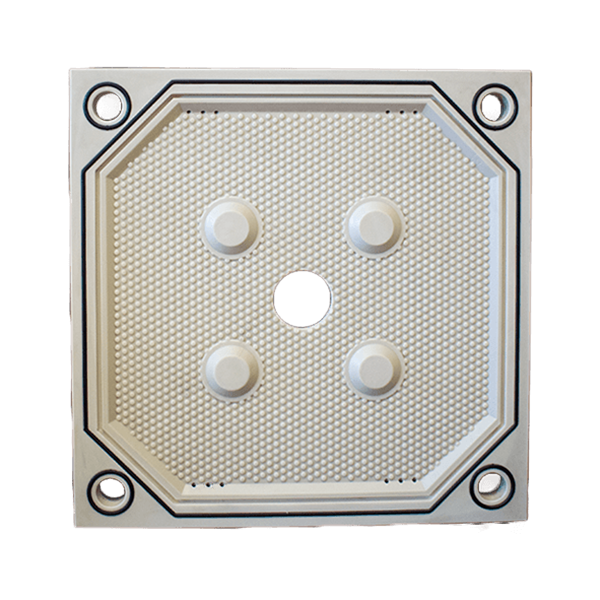

Made with 100% sourced American materials. This 0800mm Polypropylene Cloth & Gasket Recess Chamber Plate have the following parameters:

The head plate will include a clamping ring and hardware.

This product ships in 3-5 business days after signed approval drawings.
