$1,175.00

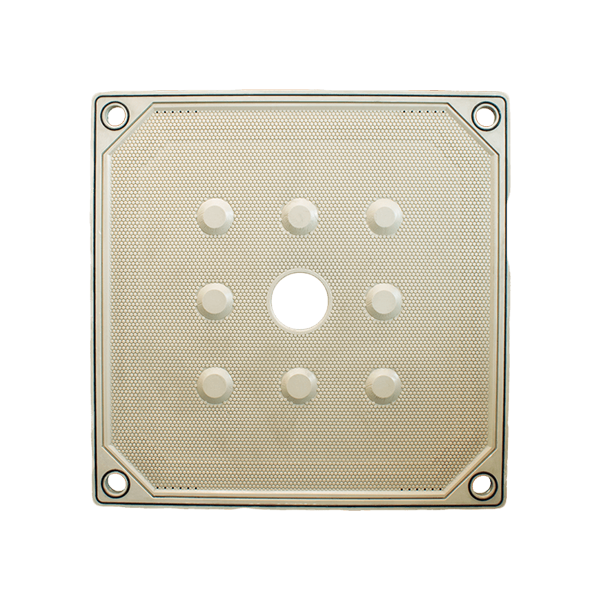

Made with 100% sourced American materials. 1500mm Polypropylene molded chamber filter element with pipped filtration area. See below for details:
Center Feed Hole Diameter: 203.2 mm | Discharge Hole (Eye) Diameter: 63mm | StayBoss Location 304.8mm x 8
The head plate will include a clamping ring and hardware.

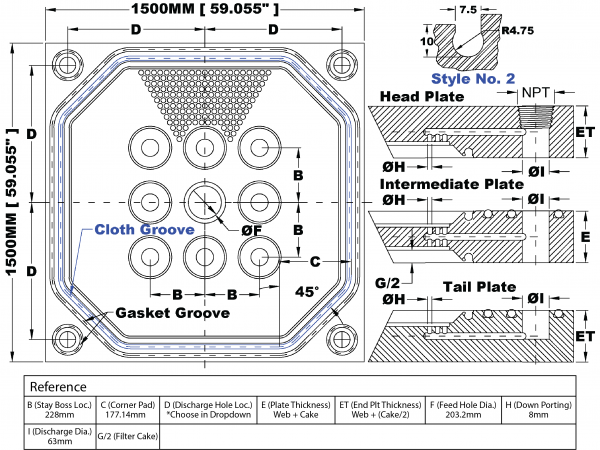

Please see the Drawing and Product Specifications for more details.
In stock (can be backordered)
Made with 100% sourced American materials. This 1500mm Polypropylene Cloth & Gasket Recess Chamber Plate have the following parameters:
The head plate will include a clamping ring and hardware.
This product ships in 3-5 business days after signed approval drawings.
| Cloth Installation | No Cloth, Cloth Installation |
|---|
