0470mm [18.500″] Non Gasket (NG) Recess Chamber Filter Plate

Name: 0470mm [18.500"] Non Gasket (NG) Recess Chamber Filter Plate
SKU: 788
Availability: InStock

$350.00

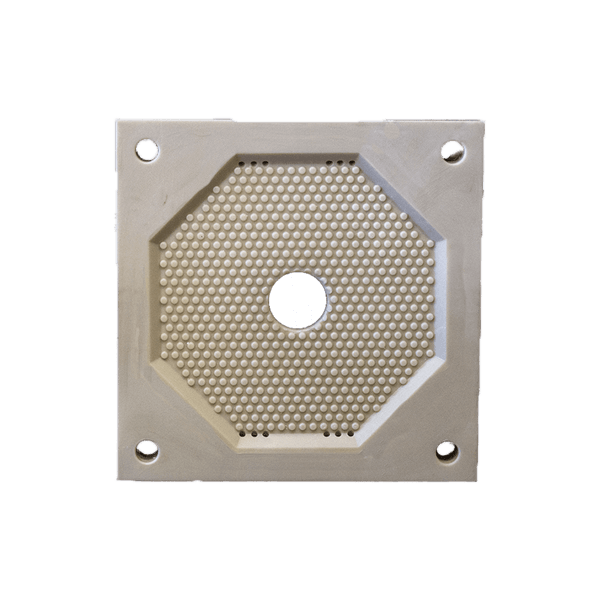

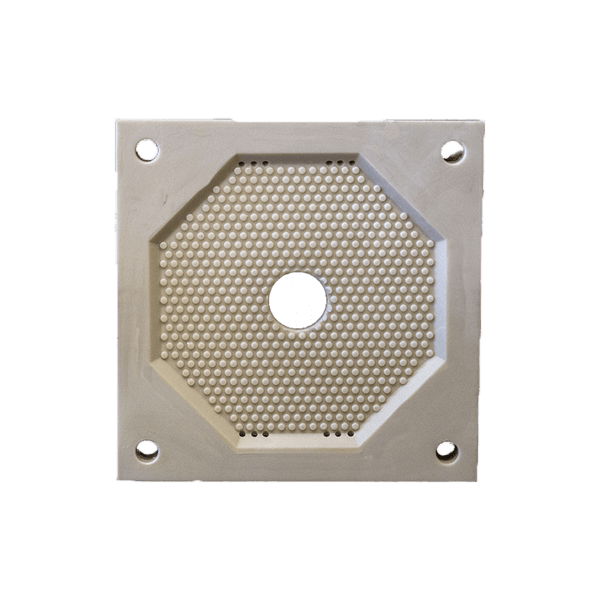

Made with 100% sourced American materials. 0470mm Polypropylene molded chamber filter element with pipped filtration area. See below for details:

Center Feed Hole Diameter: 76.2 mm | Discharge Hole (Eye) Location: 195mm | Discharge Hole (Eye) Diameter: 32mm

The head plate will include a clamping ring and hardware.

Please see the Drawing and Product Specifications for more details.

In stock (can be backordered)

Filter Cake Thickness (G/2) *

Plate Type *

Porting Style *

Head Plate NPT/Feed Diameter *Enter # between 1 - 2 inches

Discharge NPT *Enter # between 1 - 1.5 inches

Cloth Pin Options *

Intermediate Cloth Installation *

End Cloth Installation *

Cloth Color

Handle Type *

Handle Installation *If "No Install", the handles will be bolt-on version with hardware.

Rail Thickness *Please enter in mm.

Distance Inside Rail *Please enter in mm.

Handle Location *Distance from top of the plate down to the bottom of the handle. Enter in mm.

Handle Height *Centerline up to the bottom of the handle. Enter in mm.

Description

Made with 100% sourced American materials. This 0470mm Non-Gasket Polypropylene Recess Chamber Plate has the following parameters:

The head plate will include a clamping ring and hardware.

This product ships in 3-5 business days after signed approval drawings.
